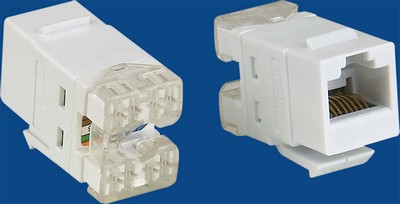

TM-8012 Cat.6 UTP Network Data keystone jack

(Click )

TM-8012 Cat.6 Network Data keystone jack

Main Description of the product:

1.keystone jack,CAT.6 class UTP Type,for connecting application of communication ports in working area.

2.A compact&ingenious designing,with the punching sequence direction marks on the sides of keystone jack. that can provides a correct and quick guide for punching and connecting operation.And the fastening cap will make sure the cable can be fixed reliably in the IDC clips.

3.according to the standard os ISO/IEC 11801;2002 CLASS&ANSI/TIA/EIA568-B.2-1CAT.6,T568A punching sequence and T568B punching sequence are both compatible.

4.Connection Type:FCC connector for RJ45 patch cord and IDC for 4-pair Cat.6 cables.

5.Fitting for the Cat.6 general cable distribution system.Compatible for Cat.5e systems.

Technique Characteristics:

1.Material of plastic parts:PC UL94V-0.

2.Material of the FCC connector's8 pin:phosphor Bronze with golden plated 6U,15U,30U,50U at option.Inserting Duration:750times.

3.Material of the IDC Clips:T inned phosphor bronze pins.Fitting for 22AWG/23AWG/24AWG Cables.Punching Duration:250times.

4.Standard 110 Punching tool.

5.Testing condition of transmitting capability:250MHZ.
