SC fiber connector multimode with 3.0mm boot Duplex

(Click )

Overview of "SC fiber connector multimode with 3.0mm boot Duplex":

Series:	Fiber Optic Connectors
Model name:	SC fiber connector multimode with 3.0mm boot Duplex
alias:	SC fiber connector singlemode with 3.0mm boot, SC fiber connector singlemode with 3.0mm boot manufacturer, SC fiber connector singlemode with 3.0mm boot supplier

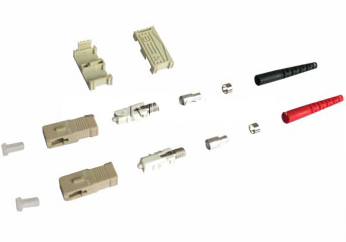

SC fiber connector multimode with 3.0mm boot Duplex

Features

· NTT-SC compatibility

· Low insertion loss and back reflection

· One-piece construction and pull-proof design

· Free-floating pre-radiuses ceramic ferrule

· Precision anti-rotation key

· Corrosion resistant body

UL-rated plastic housing and boots in a variety of colors

Applications

· CATV

· Active device termination

· Test equipment

· Telecommunication networks

· Multimedia

· Premise installations

ITEM	SM / PC	SM / APC	Multi Mode
Insertion Loss(dB)	＜ 0.2	＜ 0.2	＜ 0.3
Return Loss(dB)	＞ 40	＞ 60	-
Durability:500matings(dB)	＜ 0.2	＜ 0.2	＜ 0.2
Ferrule Type	Standard	Step / Conical	Standard
Cable	0.9 / 2.0 / 2.4 / 3.0 / Zip Cable
Boot Type	Variety of Color , Design available
