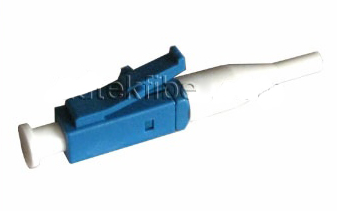

LC fiber connector,SM 0.9mm

LC fiber connector,SM 0.9mm LC fiber connector,SM 0.9mm Fiber Optic Connectors

LC fiber connector,SM 0.9mm

LC fiber connector,SM 0.9mm

(Click )
Overview of "LC fiber connector,SM 0.9mm":
Series: Fiber Optic Connectors
Model name: LC fiber connector,SM 0.9mm
alias: LC fiber connector, SM 0.9mm, LC fiber connector, SM 0.9mm manufacturer, LC fiber connector, SM 0.9mm supplier



 LC fiber connector, LC fiber optic connector,Singlemode Simplex 0.9mm


Features
  • Telecom / Datacom
  • LANs, CATV
  • Fiber to the Home
  • Premises Distribution
  • Gigabit Applications (Ethernet, ATM, SONET, etc.)
Applications
  • Compact, pull-proof design,
  • Fully compatible with standard LC products
  • Optional anti-snag simplex collar and duplex clip
  • Connector body can be used for both simplex and duplex configurations
  • Low insertion loss
  • Low return loss
  • Plastic housing and boot made from UL-rated materials
ITEM
SM / PC
SM / APC
Multi Mode
Insertion Loss(dB)
< 0.2
< 0.2
< 0.3
Return Loss(dB)
> 40
> 60
-
Durability:500matings(dB)
< 0.2
< 0.2
< 0.2
Ferrule Type
Standard
Step / Conical
Standard
Cable
0.9 / 2.0 / 3.0/Zip Cable
Boot Type
Variety of Colors
